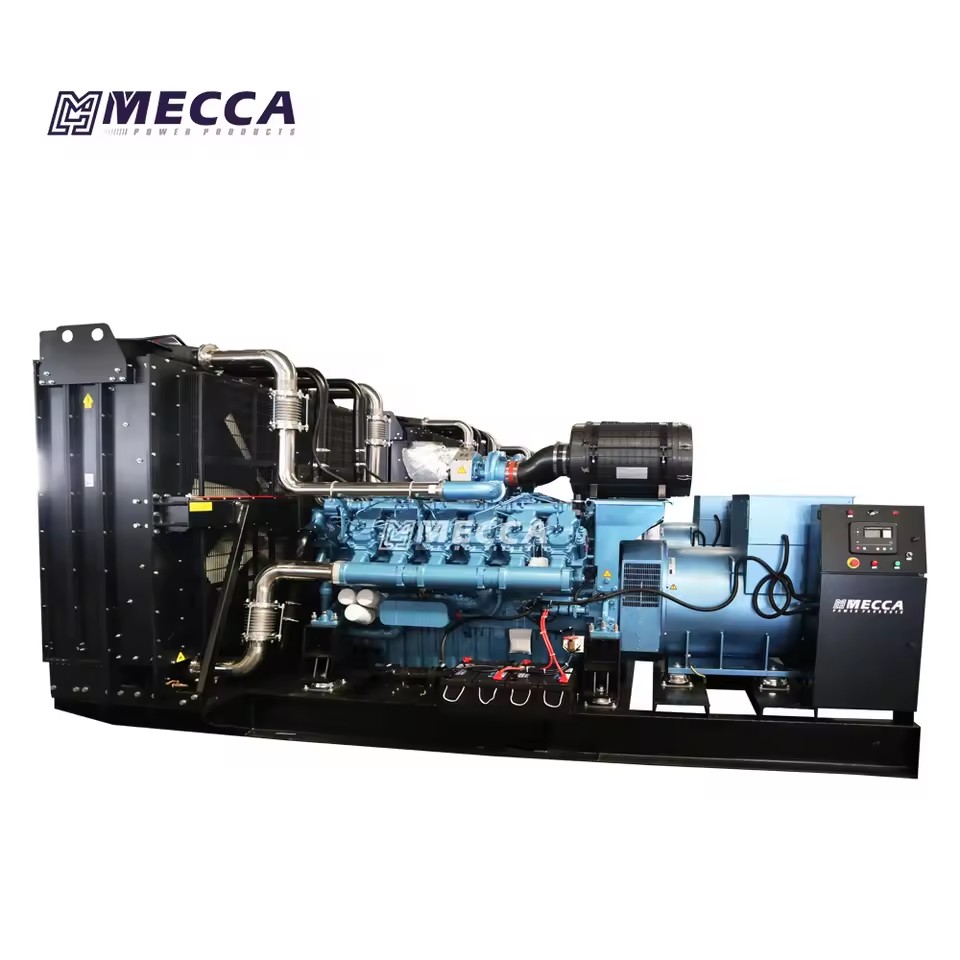

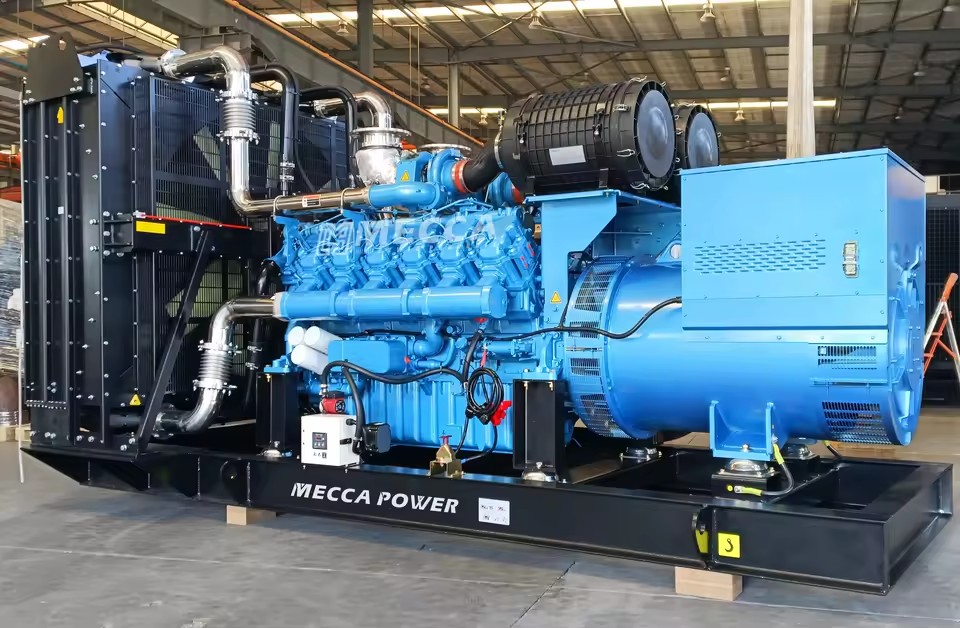

Name: New 4.16kV 60Hz Baudouin High Voltage Diesel Generador 16M33G1750/6 Powered Electricity Power Generation Genset with Auto Start
SKU: B2B-41424
Price: 286010.0 USD
Availability: PreOrder

Product description

General Feature

♦ Assembled by diesel engine and Brushless alternator.

♦Three filters as standard, fuel and water separator as optional.

♦ Radiator and fan with safety guard.

♦ Single bearing alternator IP 23, Insulation Class H.

♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.

♦ Automatic control panel and 3 poles circuit breaker, internal cable.

♦ 12V or 24V battery, battery wires.

♦ Battery and float battery charger as standard supply scope.

♦ Fuel level indicator in meter and panel

♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.

Model	LTP	PRP	Baudouin Engine	Fuel Cons.	Cylinder
kva/kw	kva/kw	Model	Origin	L/H(100%)
MC20BD	20	16	19	15	4M06G20/5	CN	6.1	4L
MC25BD	25	20	23	18	4M06G25/5	CN	6.1	4L
MC35BD	35	28	33	26	4M06G35/5	CN	7.6	4L
MC44BD	44	35	40	32	4M06G44/5	CN	9.5	4L
MC50BD	50	40	45	36	4M06G50/5	CN	10.7	4L
MC55BD	55	44	50	40	4M06G55/5	CN	11.9	4L
MC72BD	72	57	65	52	4M10G70/5	CN	15	4L
MC88BD	88	70	80	64	4M10G88/5	CN	18.8	4L
MC125BD	125	100	100	80	4M10G125/5	CN	18.26	4L
MC150BD	150	120	135	108	6M11G150/5	CN	30.2	6L
MC165BD	165	132	150	120	6M11G165/5	CN	32.6	6L
MC188BD	188	150	168	135	6M11G188/5^	CN	32.6	6L
MC220BD	220	176	200	160	6M16G220/5	CN	43.1	6L
MC250BD	250	200	230	184	6M16G250/5	CN	50.9	6L
MC275BD	275	220	250	200	6M16G275/5	CN	50.9	6L
MC300BD	300	240	275	220	6M16G300/5	CN	58.8	6L
MC350BD	350	280	320	256	6M16G350/5	CN	70.5	6L
MC400BD	400	320	375	300	6M21G400/5	CN	82.1	6L
MC440BD	440	352	400	320	6M21G440/5	CN	85.5	6L
MC500BD	500	400	450	360	6M21G500/5	CN	95.9	6L
MC550BD	550	440	500	400	6M21G550/5	CN	109.5	6L
MC660BD	660	528	600	480	6M33G660/5	CN	126.5	6L
MC715BD	715	572	650	520	6M33G715/5	CN	136.3	6L
MC750BD	750	600	680	544	6M33G750/5	CN	151.1	6L
MC825BD	825	660	750	600	6M33G825/5	CN	159.5	6L
MC900BD	900	720	800	640	8M33G900/5	CN	174.2	8L
MC1000BD	1000	800	900	720	8M33G1000/5	CN	194.1	8L
MC1100BD	1100	880	1000	800	8M33G1100/5^	CN	214	8L
MC900BD	900	720	815	652	12M26G900/5	CN	173.7	12L
MC1000BD	1000	800	900	720	12M26G1000/5	CN	195.5	12L
MC1120BD	1120	898	1020	816	12M26G1100/5	CN	207.1	12L
MC1250BD	1250	1000	1150	920	12M33G1250/5	CN	236.2	12L
MC1400BD	1400	1120	1250	1000	12M33G1400/5	CN	258.6	12L
MC1500BD	1500	1200	1375	1100	12M33G1500/5	CN	296.9	12L
MC1650BD	1650	1320	1500	1200	12M33G1650/5	CN	324	12L
MC1700BD	1700	1360	1500	1200	16M33G1700/5	CN	325.2	16L
MC1900BD	1900	1520	1750	1400	16M33G1900/5	CN	364.3	16L
MC2050BD	2050	1650	1875	1500	16M33G2000/5	CN	401	16L
MC2250BD	2250	1800	2063	1650	16M33G2250/5^	CN	428.6	16L
MC2250BD	2250	1800	2000	1600	20M33G2250/5	CN	432.8	20L
MC2500BD	2500	2000	2250	1800	20M33G2500/5^	CN	466.4	20L
MC2550BD	2550	2040	2280	1824	12M55G2550/5	CN	463.4	12L
MC2750BD	2750	2200	2500	2000	12M55G2750/5	CN	513.6	12L
MC3000BD	3000	2400	2750	2200	12M55G3000/5^	CN	557.2	12L
MC3125BD	3125	2500	2813	2250	16M55G3000/5	CN	570.8	16L
MC3313BD	3313	2650	3000	2400	16M55G3300/5	CN	602.6	16L
MC3750BD	3750	3000	3250	2600	16M55G3750/5	CN	660.4	16L
MC4125BD	4125	3300	3750	3000	16M55G4000/5^	CN	755.1	16L

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Frequency

50/60 Hz, 60 Hz

Rated voltage

4.16kV 13.2kV 13.8kV 60Hz

Type

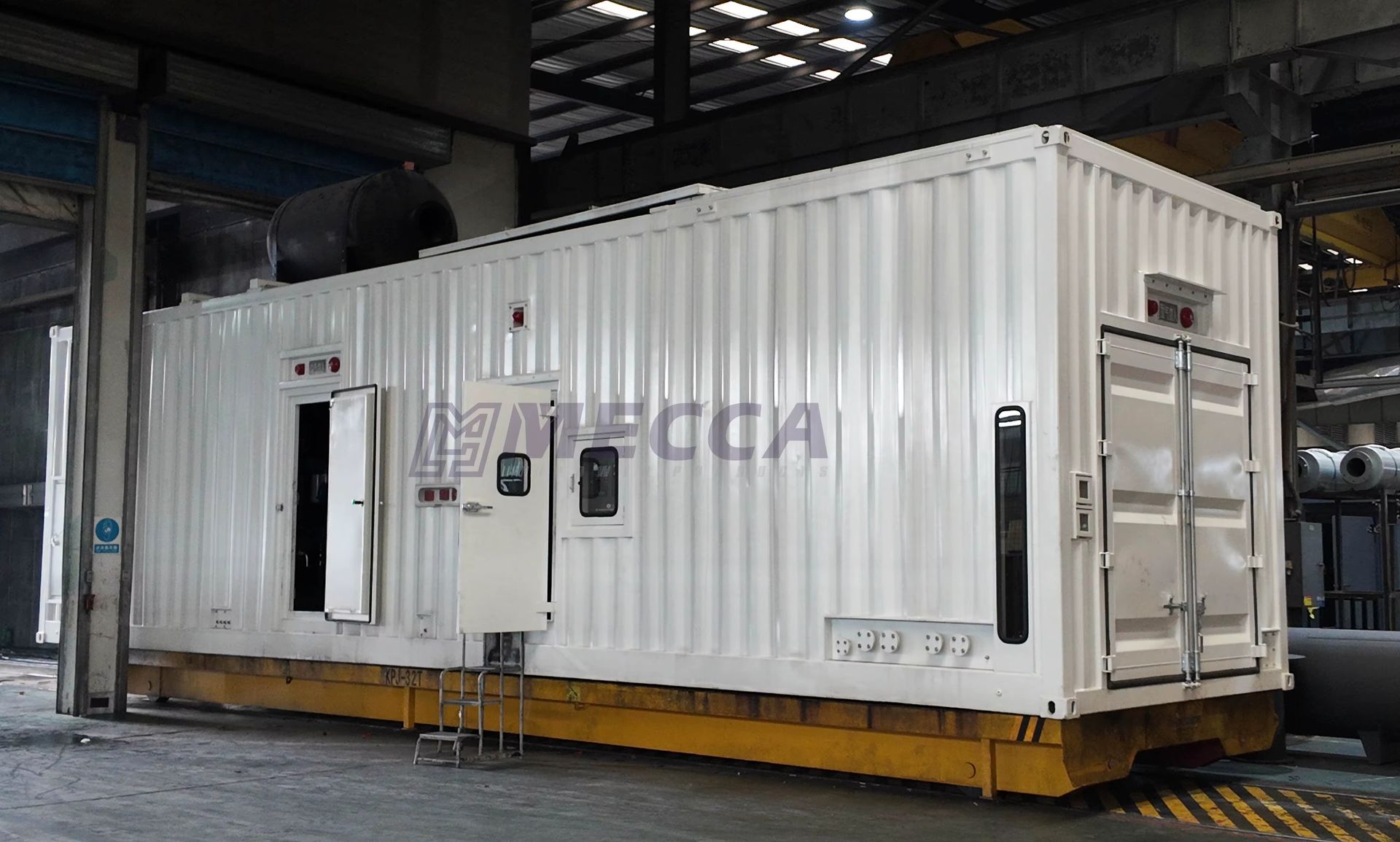

Open Frame, Super Silent Type, Silent Type, Trailer Type, Container Type

Cooling System Type

Water Cooling System

Rated current

36A-5500A

Protection

Overload Protection, Automatic Voltage Regulation, Low Oil Shutdown

Speed

1800 RPM

Starting System

Auto Start, 24V DC Electric Start

Options

Remote Control, ATS, Rainproof Canopy, Battery Charger, Soundproof Canopy

Efficiency

95%

Place of origin

China, Fujian

Model number (Specification)

MC2200BD

Weight

OEM

Engine

Baudouin/Weichai 16M33G1750/6

Generator Type

Silent/Open/Trailer/Containered

Alternator

Stamford / Leroy Somer /Mecc Alte/

Control panel

Deepsea / Com Ap /Smartgen/DEIF, optional

Breaker

High Voltage Switchgear

Application

Hospital/Construction/Building/Mining/Data center

Certificate Available

CE, ISO, OEM Authorization etc.

Warranty

3months-1year

Fuel tank

Optional Independent Fuel Tank

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Output Type

AC Three Phase

Rated Power (Product option)

1600kW/2000kVA PRP, 1760kW/2200kVA ESP
