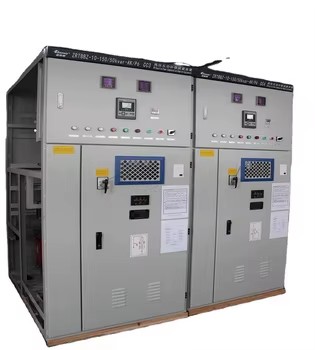

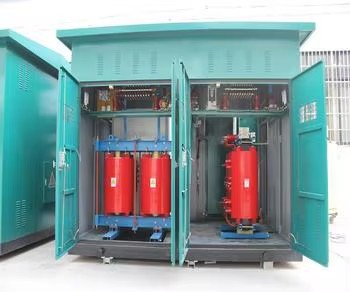

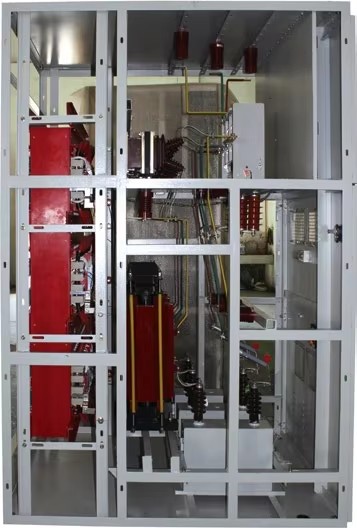

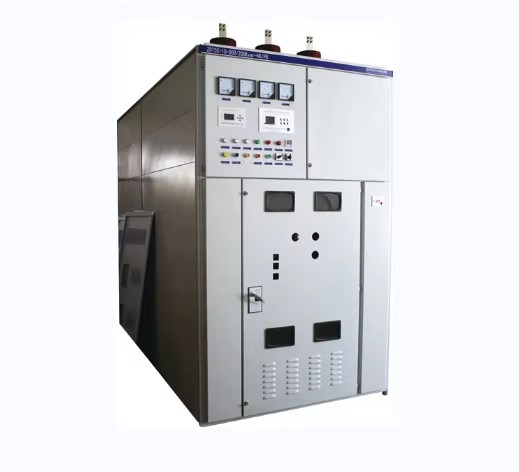

| 17.5KV-20KV-22KV-30KV-35KV-66KV- Capacitor rated output capacity 50KVAR can be adjusted to 50000KVAR 6.3kV high voltage automatic reactive power compensation kit Reference Standard All equipment design, manufacturing, inspection, testing and characteristics are subject to applicable IEC standards and National Standards (GB) and Power Industry (DL) standards (SI) in accordance with applicable special standards.. GB10229 "reactor" GB311.1 "Insulation of high voltage transmission power generation equipment" GB311.2 ~ 6 "High Voltage Test Technology" GB7354 "partial discharge measurement" GB / T11024 "Parallel capacitor with AC power system with a nominal voltage 1kV" GB4208 "Classification of Shell Protective Level" GB5882 "Insulation of high voltage power equipment" GB50227-95 "Parallel capacitor design specifications" GB11024-1989 "High voltage parallel capacitor durability test" GB15116.5-1994 "AC high-pressure fuse parallel capacitor protection fuse" GB311.1-1997 "Insulation of high-voltage transmission and electrical power generation equipment" DL / T462 "Series Retriever Ordering Technical Conditions for High Voltage Parallel Surface" DL / T672 "substation voltage reactive modulation control device ordering technical conditions" DL / T840-2003 "Technology Conditions for High Voltage Parallel Labels" DL / T653-1998 "Discharge Wallery Ordering Technology Conditions" DL / T804-2002 "AC power system metal oxide arrester use guide" DL442-1991 "High-pressure parallel capacitor single protection fuse ordering technical conditions" If there is the latest version, the above standard is executed according to the latest version. No matter what is nothing, the two sides will be appointed in the negotiations and contractual stages. Systems Rated voltage: 6.3kV Maximum operating voltage: 7.2kV Rated frequency: 50Hz Neutral connection method: neutral point is not grounded Import mode: cable trench Environmental Conditions Altitude: ≤1500 m Maximum average relative humidity: 90% Maximum ambient temperature: + 45 ° Minimum ambient temperature: -35 ° The most hot moon 24h average temperature: + 30 ° No explosive hazardous medium, the surrounding medium does not contain gas and conductive medium, which is not allowed to be filled with water and vapor and severe mold, and the location should not have a strong outer magnetic induction strength. |
1.What's the order process?
1)Inquiry · provide us all clear requirements (total qty and package details).
2)Quotation · officaial quotation from with all clear specifications from our professional team.
3)Marking Sample · confirm all quotation details and the final sample.
4)Production · mass production. 5)Shipping · by sea or by air.
Minimum order: 1 Units
Payment terms, specifications, and order details are confirmed before preparation begins.
Lead time will be confirmed with your quotation.
Packaging details are available on request.
Final packing, freight, and delivery dates are confirmed before dispatch.
