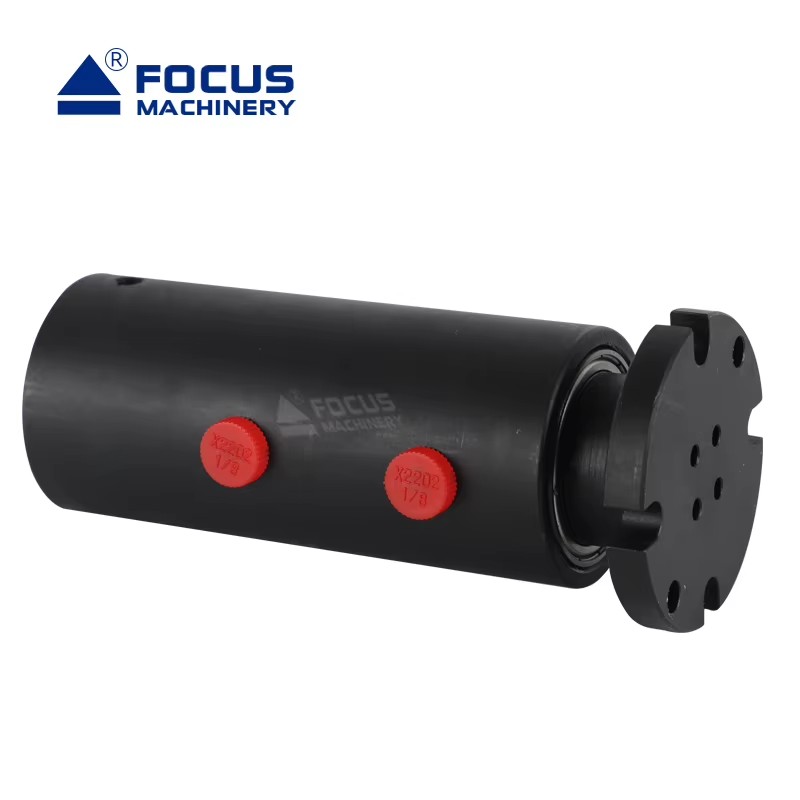

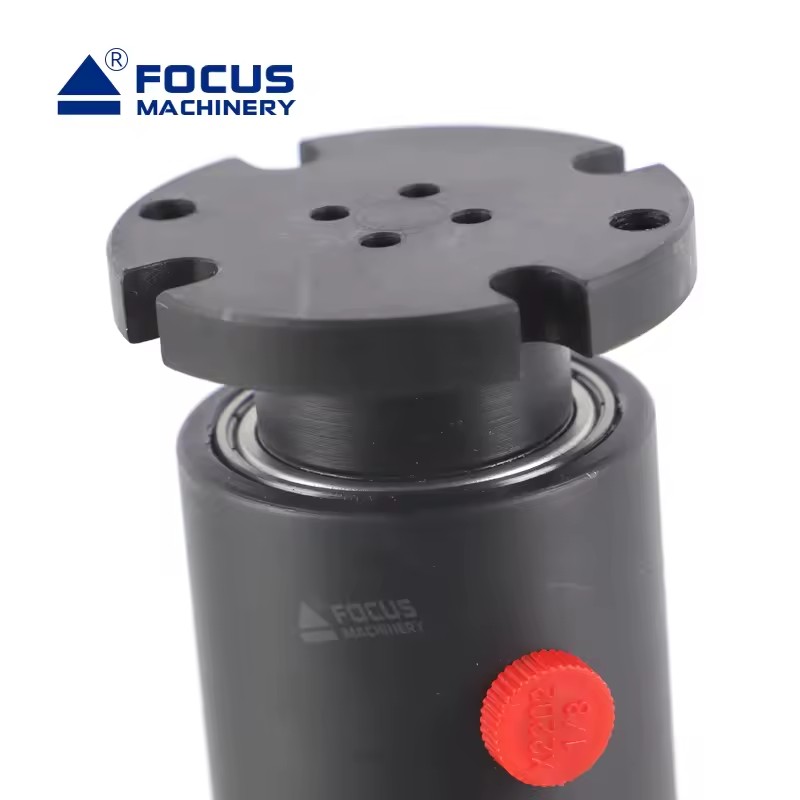

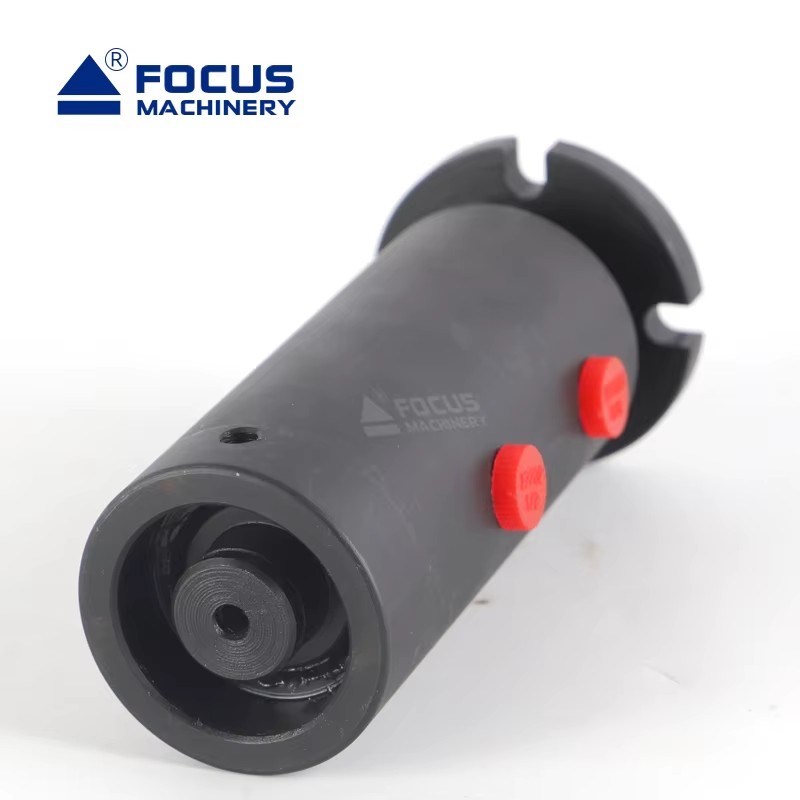

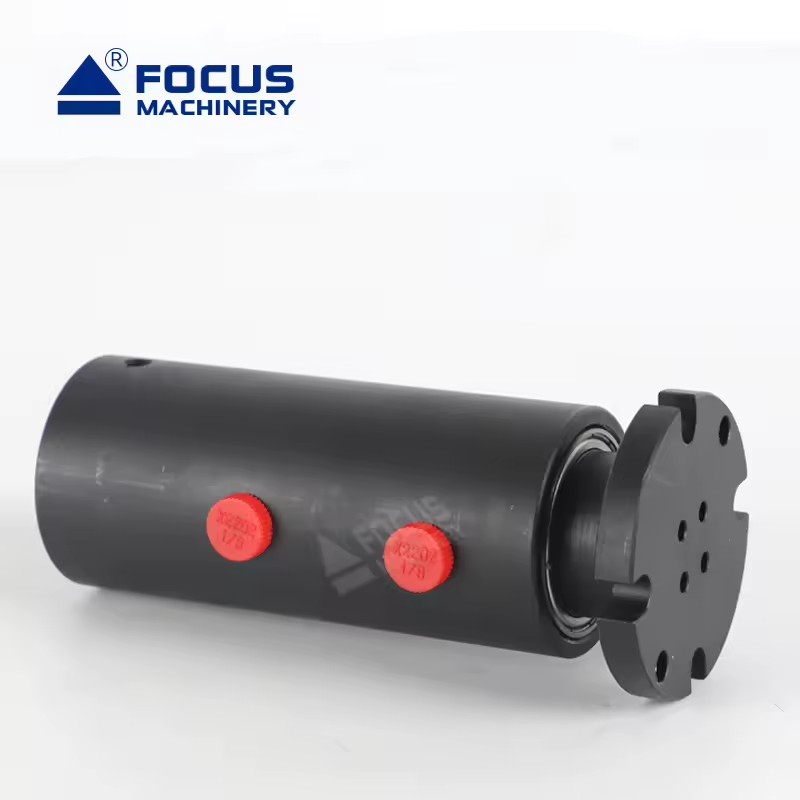

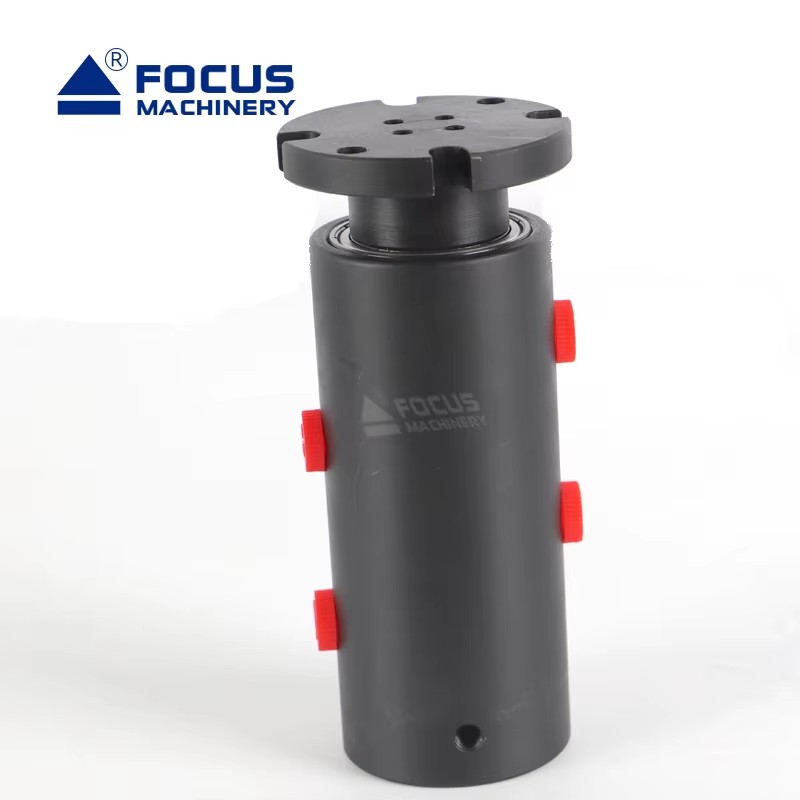

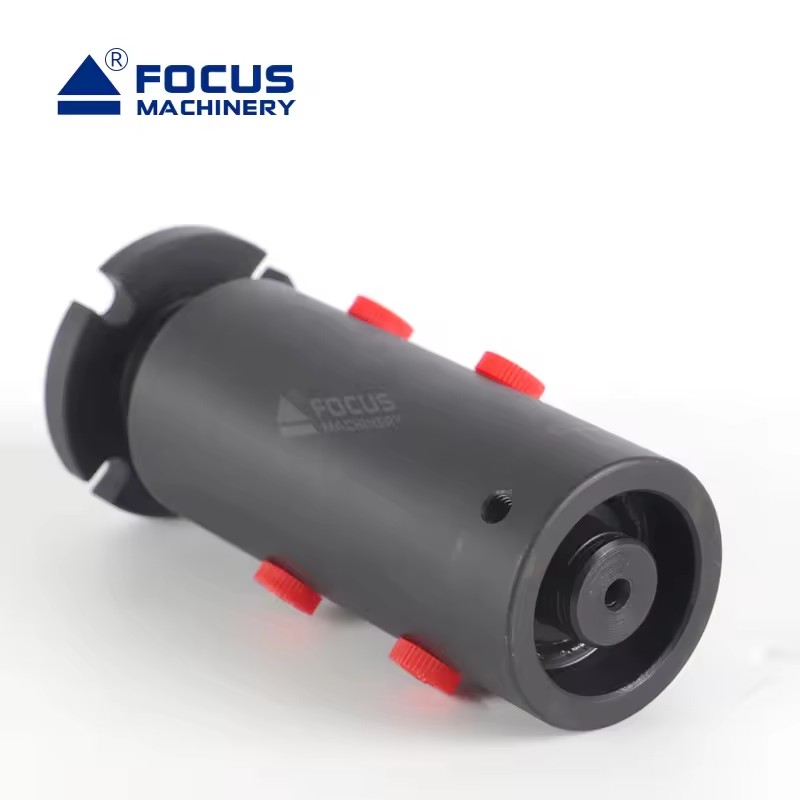

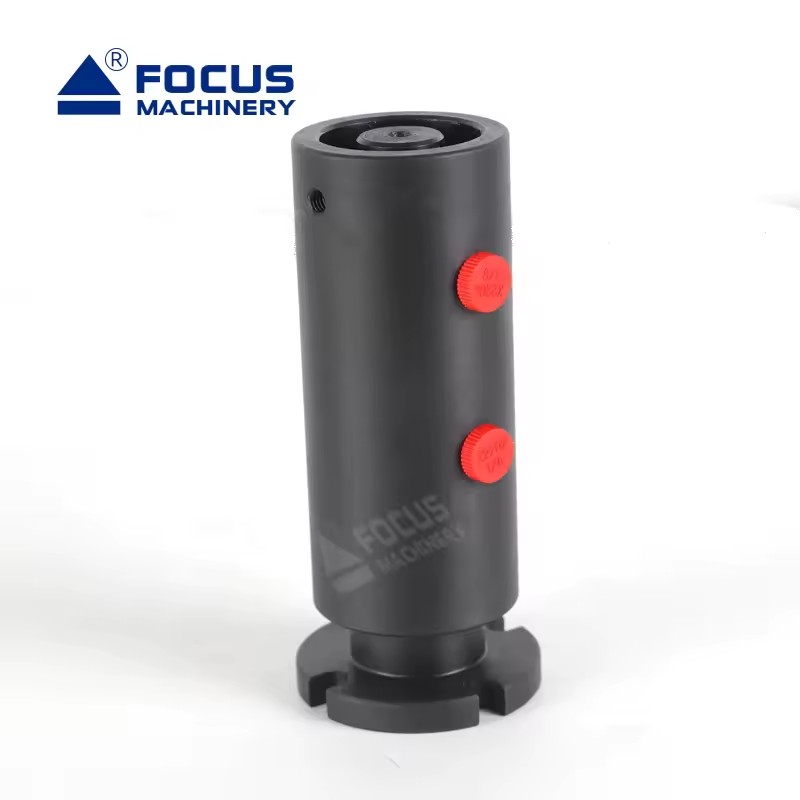

Name: 4 Passages Multi-Circuit Rotary Unions 360° High Pressure Hydraulic Multiport Rotating Joint for Construction Machinery
SKU: B2B-71033
Price: 40.0 USD
Availability: PreOrder

Product description

Multi-Circuit Rotary Unions Hydraulic Oil Multi-port Swivel Unions 2 3 4 6 7 8 9 Channel Multiple Passages Rotary Joint Multiport Rotating Unions for Variety Media High Pressures

Multiport Swivel Joints Introduction

multi-channel rotary joint is a mechanical device used to connect fixed pipeline systems and rotating equipment (such as pumps, mixers, fans, etc.), which allows fluid to be continuously transmitted between rotating and stationary parts without leakage. This type of joint is commonly used in chemical, petroleum, pharmaceutical, food processing, and other industrial fields, where the medium (such as water, oil, steam, chemicals, etc.) needs to be transported to specific parts of rotating equipment.

Multiport Swivel Joints Advantages and characteristics

1. Multi-channel rotating joint Design It can transmit multiple different media simultaneously, with each channel independently sealed and not interfering with each other.

2. Sealing performance Multi-channel rotating joint use high-performance sealing components,wear-resistant materials to, ensure that no leakage occurs during high-speed rotation

3. Bearing system Multi-channel rotating joint Internally, it contains a precision bearing system to support rotating components and reduce friction, ensuring smooth rotation of joints.

4. Material selection Multi-channel rotating union According to different working environments and media characteristics, the multi-channel rotary joint can be made of different materials such as stainless steel, carbon steel, copper, aluminum alloy, etc.

terface type Multi-channel rotating union the import and export of connectors can be customized according to needs. Common types of interfaces include flange connection, threaded connection, quick connector, etc

6. Temperature and pressure range The multi-channel rotating union can operate within a certain temperature and pressure range, and the specific parameters depend on the design and materials used

Multiport Rotary Union Hydraulic - innovative seal for air/gas, coolant and hydraulics

multiple-passage hydraulic rotary unions are available in 2, 3, 4, 6, 8, 10 and 12 passages. These general-purpose rotary distributors have special sealing technology suitable for vacuum and bidirectional pressures. At the same time, different types of media can also be transferred independently through the flow channels. The carbon steel (black oxide) construction is suitable for air/gas, coolant and hydraulic applications. For applications where water or corrosive media must be transmitted, we recommend using the stainless steel models (GPS series). As standard, these hydraulic rotary unions have NPT threaded shaft connections and O-ring grooves for flush mounting of the union to the interface. You can easily combine these multiport rotary joints with electrical power and/or data signals.

Article No.	No. of Passages	Connection	Passage Size	Through bore	Feature/Option
JDGP-2T	2	1/8", 1/4", 3/8", 1/2", 1"	4mm - 25.4mm	with or w/o	Slip ring
JDGP-3T	3	1/8", 1/4", 3/8", 1/2", 3/4", 1"	4mm - 25.4mm	with or w/o	Slip ring
JDGP-4T	4	1/8", 1/4", 3/8", 1/2", 3/4", 1"	4mm - 25.4mm	with or w/o	Slip ring
JDGP-6T	6	1/8", 1/4", 3/8", 1/2", 3/4"	4mm bis 19mm	with or w/o	Slip ring
JDGP-8T	8	1/8", 1/4", 3/8", 1/2"	4mm - 12.7mm	none	Slip ring
JDGP-10T	10	1/4", 3/8"	6.35mm - 9.5mm	with	Slip ring
JDGPT-12T	12	1/4", 3/8"	6.35mm - 9.5mm	with	Slip ring

High Pressure Multiport Rotary Union	High Pressure High Speed Multiport Rotary Union
passage	1-24 Customized Size	1-24 Customized Size
Interface size	G1/8" · G 2"	G1/8" · G 2"
pressure	0 · 500 bar	0 · 350 bar
speed	0 · 300 RPM	0 · 4500 RPM

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 22.36 for 1 unit · Transit time: Est. 16-23 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Measurement system

Imperial (Inch)

Inlet Type

NPT Flange BSP ORB

Inlet Size

Customizable size

Stationary Port Thread Size

Customizable size

Rotating Shaft Thread Size

Customizable size

Swivels type

Swivels

Application

General Industry, Heavy Industry

Finish/coating

Oxidized

Customized support

OEM, ODM, OBM

Warranty

1 years

Place of origin

China, Shandong

Model number (Specification)

Multichannel hydraulic rotary joint

Model

Multichannel hydraulic rotary joint

Passage

1-24 Customized Size

Interface Size

G1/8"---G 2"

Max. pressure

500 bar

Max.Speed

4500 RPM

Selling Units

Single item

Single package size

25X20X30 cm

Single gross weight

13.000 kg

Material (Product option)

Carbon Steel, Materials can be customized

Swivels diameter

3/8", 1/8", 3/4", 1", 1 1/4", 1 1/2", 2", Customized Size, 1/2"

Certifications & Compliance

Lead time

15 days

Minimum order

1 Units
